The Rolls-Royce 20HP.
The small (HP) car, with the big tool kit!!
by Peter Charlton
The 20HP was on the companies drawing board as early as 1918, but not seriously considered by the board until 1920. Two years later in 1922 the 20Hp was put into production. After the Great War, more people started to drive themselves, but most families that bought the new 20HP in 1922, still employed a chauffeur. The chauffeur not only drove the car, but maintained the car. To do this, the car came will a well-equipped tool tray. The 20HP turned out to be a great finial success for the company, the car was lighter, easier to drive and far more economical than the companies 40/50.

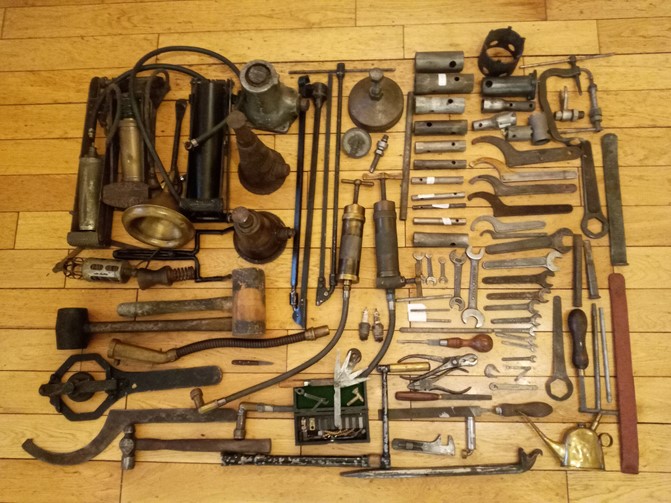

The pictures and spread sheet, show all the tools used in the 20HP tool tray over the cars production life.
There are two further tools to go into the picture. I did not realise until I took the photos and put the tools back. I had two tray items laying on my bench, that I forgot to put into the picture. I will leave readers guess what the two missing items are?
For the complete tool list [click here] (or see below)
| Single Ended Jaw Spanners | From Chassis 65H1 (March 23) | |||
| 5BA | F51960 | |||
| 3BA | F51961 | |||
| 2BA | F51962 | |||
| 1BA | F51963 | |||
| 1/4" | F51964 | |||
| 5/16" | F51933 | |||
| 3/8" | F51934 | |||
| 7/16" | F51935 | |||
| 1/2" | F51936 | |||
| 11/16" | F52298 | |||
| Tappet adjusting spanner | E50028/50526 | |||
| Double Ended Jaw Spanners | Up to chassis 65-H0 (March 23) | |||
| 2BA x 5BA | F6372 | |||
| 3BA x 1/4" | F9881 | |||
| 1BA x 1/4" | F9799 | |||
| 5/16" x 3/8" | F2893 | |||
| 1/2" x 7/16" | F2894 | |||
| Box Spanners | ||||
| 7BA x 5BA | F9840 | |||
| 3BA x 2BA | F9809 | |||
| 1BA x 1/4" | F9810 | |||
| 5/16" x 3/8" | F9811 | |||
| 7/16" x 1/2" | F9812 | |||
| 5/8" | F54932 | From GXL1 (October 27) | ||
| 5/8" and spark plug | F9813 | Up to GUJ81 | ||
| 3/4" x 13/16" | F9814 | |||
| F9880 | Early cars | |||
| Pivot nut | F52716 | From GF70 (September 23) | ||
| Sparking Plug | E52309 | Up to 90KD (September 23) | ||
| Sparking Plug | E53792 | From GA1 (September 23) | ||
| Rear axle Tube Nut | G51004a | |||
| Tommy Bars | ||||
| 3/16" dia | E7342 | |||
| 1/4" dia | E7658 | |||
| 5/16" dia | E9048 | |||
| 7/16" dia | E12645 | |||
| 5/8" dia- rear axle tube nut | G50976 | |||
| "C" Spanners | ||||
| Rear shock absorber, friction type | F51754 | Up to GUJ81 (October 27) | ||
| Water connection nut | E55017 | From GFN1 (September 28) | ||
| Starting motor end bearing nut | D51637 | From GFN1 (September 28) | ||
| Steering column and Prop shaft | F51789 | To GHJ71 (March 27) | ||
| Prop shaft and steering column | E6422 | |||
| Exhaust union | E6258 | |||
| Castellated Spanners | ||||
| Camshaft nut | E17488 | |||
| Rear axle oil drain | G51001 | |||
| "Other" Spanners | ||||
| Adjustable spanner | RF6613 Lucas "Girder" Later marked Lucas girder No.91 | |||
| Single ring spanner. Spring drive and clutch spring cap | E52106 | |||
| Carburettor filter plug | E52018 | Up to GUJ81 (October 27) | ||
| Valve spring replacement tool | E52143 | |||
| Valve spring compression tool | ||||
| Valve grinding tool | E52142 or E51838a | |||
| Valve spring Clamp | E51294a/E51298 (Top screw) | |||
| Bolts, Rods, Nuts | ||||
| Hub withdrawal screw and collar | G3425a | Small collar up to GNK85 (March 25) | ||
| Hub withdrawal screw and collar | G3425b | Large collar from GNK86 (March 25) | ||
| Withdrawal rod, rear exile drive coupling | G8522 | |||
| Withdrawal nut for spring drive | E52012 | Up to 90KD (September 23) | ||
| Withdrawal nut for spring drive (Export only) | F52430 | |||
| Dynamo drive forcing bolt | E51653 | |||
| Water pump gear withdrawal 1/2" bolts | K210 | |||
| Screw Drivers | ||||
| 3" Blade | F81889 | Robert Sorby, Sheffield | ||
| 4" Blade | F81888 | Robert Sorby, Sheffield | ||
| "T" spanners (Keys) | ||||
| Cross steering tube adj screw | F52219 | From 79A1 (March 23) | ||
| Pliers | ||||
| 5" Engineers | ||||
| 6" Gas | Domino Brand | |||
| Miscellanies | ||||
| Cold Chisel | Kayser Ellison | Up to GAJ41 (May 27) | ||
| 1/2lb Hammer | Up to GAJ41 (May 27) | |||
| Petrol Filler | Liqall Type Ax non USA | F10552 | From Feb 24 to GAJ41 (May 27) | |
| Funnel | Up to GA12 (September 23) | |||
| 8" Half round file (13" overall length) | Firth and Sons | Up to GAJ41 (May 27) | ||
| Gauges | ||||
| Feeler Gauges | Chesterman Sheffield | F53557 | ||
| Schrader Tyre Pressure Gauge in purse | Right angle | Up to GAJ41 (May 27) | ||
| Schrader Tyre Pressure Gauge in purse | Straight | From GDK16 | ||
| Jack | ||||
| Michelin "Flirt" | TOTHALS then EBASIST 1000kg / 1 Ton | Up to GAJ41 (May 27) | ||
| Michelin "Forrest" | EBARLEY Type 1000kg | F54375 | Up to GAJ41 (May 27) | |
| Dunlop No.10 | TENKNOBS | F77731 | From GAJ42 (May 27) | |
| Wheels and Tyres | ||||
| Mallet | Wooden head | Up to GAJ27 (May 27) | ||
| Mallet | Rubber head | From GAJ28 (May 27) | ||
| 18"Tyre Levers | No. 552 | Dunlop x 2 | Up to GAJ41 (May 27) | |
| 12"Tyre Levers | No. 551 | Dunlop | Up to GAJ41 (May 27) | |
| Tyre Levers medium | RF3854 Dunlop | From GAJ42 (May 27) | ||
| Foot Pump | "Fluoboric" replaced by F77376 "Pilsgate" | Dunlop "Mortier" de Lux | ||
| Foot Pump | Kismet "Junior" | |||
| Foot Pump | Nesthill No.9 | |||
| Valve connector | Schrader Universal | |||
| Hub Retaining Nut | G52664 | From GAJ42 (May 27) | ||
| Hub Withdrawal Tool | Only for Australia and New Zealand | F52430 | Up to GAJ41 (May 27) | |
| Hub Withdrawal Tool | Only for Australia and New Zealand | F55116 | From GAJ42 (May 27) | |
| Rim Removal Tool | On chassis fitted wit straight-side tyres. | Dunlop | BLAWITH | |
| Forked No.547 | For beaded edged tyres | Dunlop | TOTLAND | |
| Wheel Spanner small collar | Dunlop Type E2 | Up to GPK41 | ||
| Wheel Spanner | Dunlop Type E2, G2, H2 | G52020 Large collar | GPK42 to GAJ41 | |
| Wheel Spanner | Dunlop Type E2, G2, H2 | G53140 | GAJ42 onwards | |
| Balance Weights | Bakelite | G73873/G73878 | Eattasoap/Eattarue | |
| Balance Weights | Lead/Steel | G73872/G73879 | Eattasip/Eattasea | |
| Wheel disc "C" spanner | Ace | |||
| Battery | ||||
| Hydrometer | Exide Type S1 | F77247 | ||
| Hydrometer | Peto & Radford | In some chassis | ||
| Lucas Inspection Light Plug | F8069 / D704169 | A to E series / From F series. | ||
| Ignition | ||||
| Distributer Spanner/feeler | D50837a | |||
| Box for Distributer tools Teak | D50910 | Up to 44G5 (December 22) | ||
| Box for Distributer tools, wood cloth covered | D50962 | From 44G6 to GSK80 (October 25) | ||
| Box for electrical spares, Teak | D50842 | Up to 44G5 (December 22) | ||
| Box for electrical spares, wood cloth covered | D50963 | From 44G6 to GSK80 (October 25) | ||
| Box for Distributer tools and electrical spares, wood cloth covered | D51399 | From GSK81 to GAJ41 (May 27) | ||
| Box for electrical spares | D51789 | From A to part of J | ||
| Watford Magneto Spanner | E5265a Axham | On chassis fitted with Watford magneto | ||
| 3" File with round handle for contact points | D50881 | Up to GZK37 (March 26) | ||
| 3" File with flat handle for contact points | D50912 | From GZK38 (March 26) | ||
| Carborundum Paper for contact points | D51968 | From GAJ42 (May 27) | ||
| Sparking Plugs 18mm | ||||
| Lubrication | ||||
| Oil/Grease gun with connector | Enots | Up to GDK15 (August 24) Series A-D | ||
| Oil/Grease gun with intensifier with connector | Enots | From GDK16 (September 24) | ||
| Grease nipple cap | The Enots Oiler/Grease gun started off in the early | |||
| 20's with the straight connector. It then changed | ||||
| to the right angled connector on or before 1924. | ||||
| Oil Can | Lucas No.40 | |||
| Valve | ||||
| Valve complete with: | E53158 | |||
| Wedge | E53147 | |||
| Bottom Washer | E53148 | |||
| Stem Packing | E53165 | |||
| Top Washer | E51088 | |||
| Protector | 15' Seat | E52017 | Series A & B | |
| Protector | 45' Seat | E52965 | Series C - K | |
| Valve Spring | E50738 | |||
